Product Sheet
Catalog Number
49210-30-1M

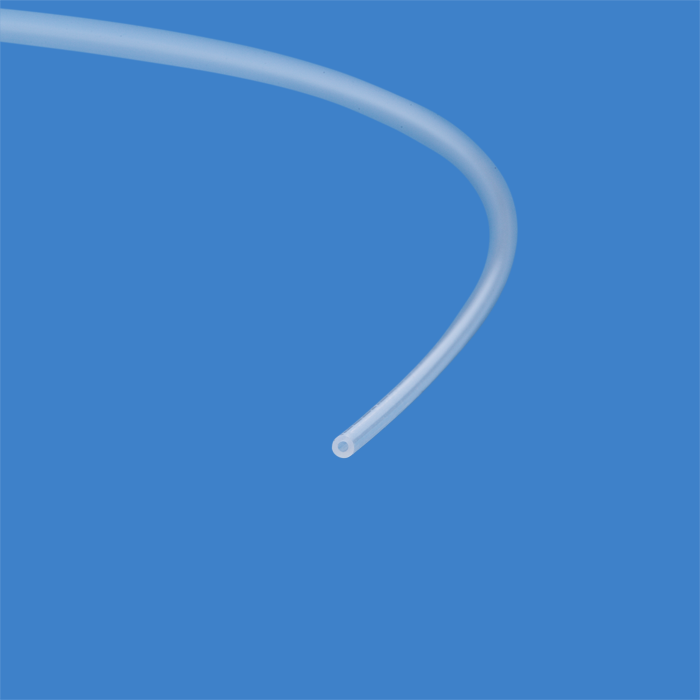

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Info

This PTFE (Polytetrafluoroethylene) tubing is extruded from virgin PTFE. No additives are added to the original PTFE material, except for particles for color coding.

This tubing is used widely in all low-pressure, laboratory applications including before and after an HPLC Pump such as with Mobile Phase Delivery and Solvent Waste Systems. Since PTFE tubing contains "micro-pores" in the tubing wall, which allows a quick air exchange, consideration for use with degassed and oxygen-sensitive solvents is needed.

  • Internal and Outer Dimensional Tolerance: +/- 0.20mm

  • Color: Natural, Translucent

  • Wall Thickness: 0.425 mm

  • Pressure rating: 510 psi (35.1 bar)

  • Max Temperature: 260°C

Other lengths available:

  Price
  $7.86
