Adapter, for use with low to medium pressure HPLC. 10-32 female to 1/4-28 male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. Bulk Price.
Additional Info:

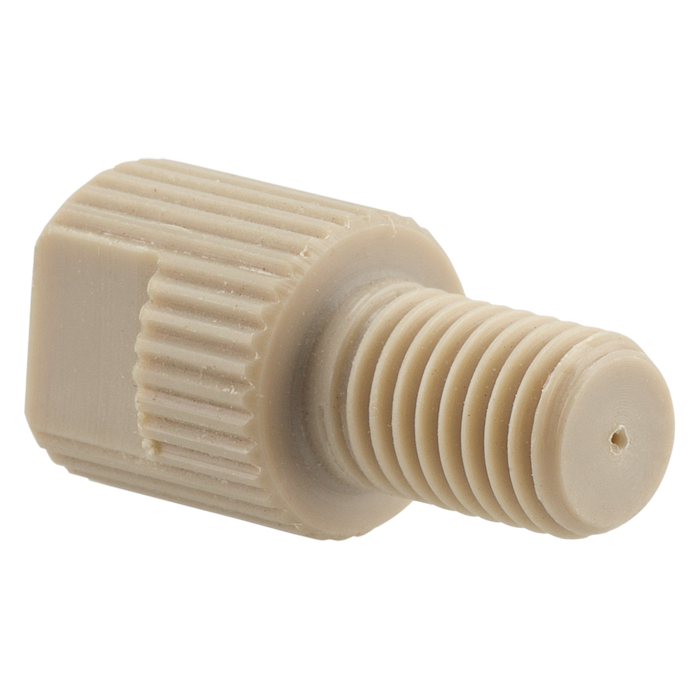

This all-PEEK adapter has 10-32 threaded male connector on one side and 1/4-28 threaded, female port on the other side.
These are great for medium and low-pressure applications when you want to connect a 10-32 male nut to an existing 1/4-28 female port.
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig.
Click HERE for economical pack of 10.
The "flat" section on the knurled adapter allows to use a wrench for an extra 1/8 of clockwise turn for tighter sealing or a slight counterclockwise turn to help remove if a tight fitting is too hard for hand removal. The flat section can also be used to hold the adapter in place with a wrench while the male nut is tightened in the adapter.
Note: Click HERE for key differences between high and low pressure unions and adapters.
