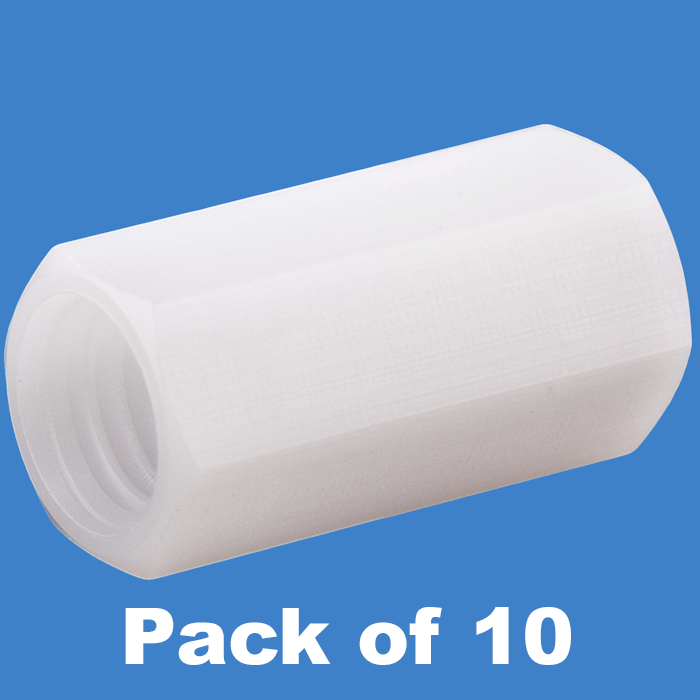

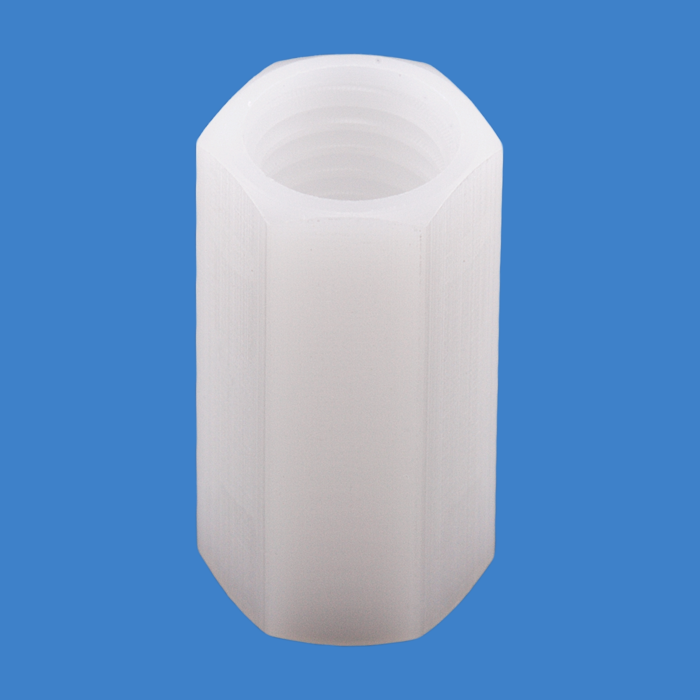

Union, Connector, low pressure, with 1/4-28 screw threads. Nylon. ARE-Applied Research brand. 10/PK.
Additional Info:
This "Union" is used to connect the same size low pressure tubing (ETFE, FEP, PFA or PTFE) on both ends, in the high pressures zones of HPLC systems. Due to its interior design, you can use this with 1/8" or 1/16th OD Tubing. The tubing ends will butt up against each other forming a zero dead volume connection.
Maximum Temperature: 100°C.
Click HERE for suggested low pressure, Finger Tightened Connectors
Note: Click HERE for key differences between high and low pressure unions and adapters.
(nuts) which are sold separately.Nylon provides high strength and stiffness allowing for good connections when used with proper tubing connectors and all low pressure tubing grades.
Note: Click HERE for key differences between high and low pressure unions and adapters.
