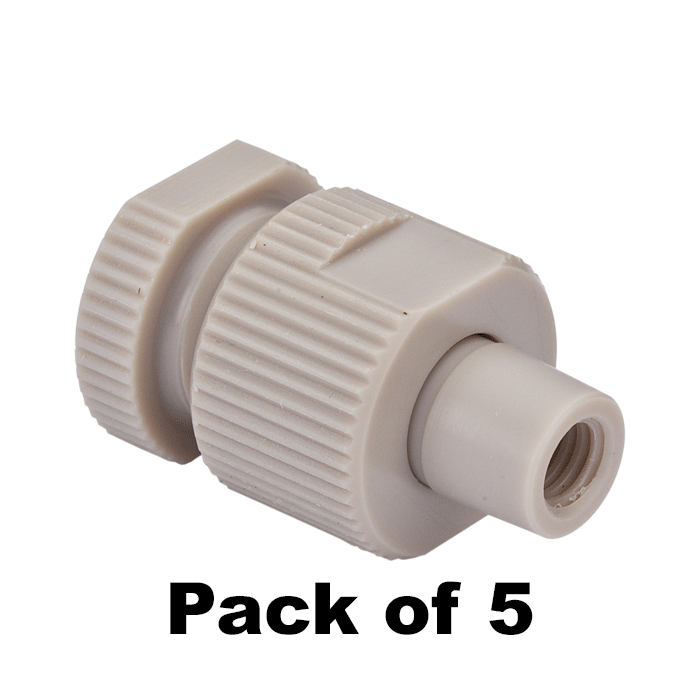

Inline Filter, for HPLC, female connections All-PEEK filter holder only. Uses disposable filters which are sold separately. ARE-Applied Research brand. 5/PK.

Additional Info:

Compatible with typical flow rate analytical columns up to 4,500 psi and 5 ml/minute. Also used as a union to connect tubing, but with a filter. Not recommended for use with UHPLC pressure ranges.

  • Economical way to protect your columns and instruments.

  • Re-usable filter holder.

  • Easy to install after the pump, before the injector.

  • Easy to replace the filters.

The universal connections (fits all standard HPLC threads and pilot lengths) can be installed with a wrench or hand tightened.

When these filters are in use, and pressure starts to rise, simply disconnect (after pressure in the column is at atmospheric), dispose of and replace with a suggested, new 0.188 inch, 0.5 um stainless steel, PEEK or Titanium PEEK-encased filter; sold separately but any filter that is 1/4 inch OD and 1/16th inch thick should work.

  • Click HERE for suggested 0.5 um SS filter ordering information.

  • Click HERE for economical pack of 10 PEEK holders.
