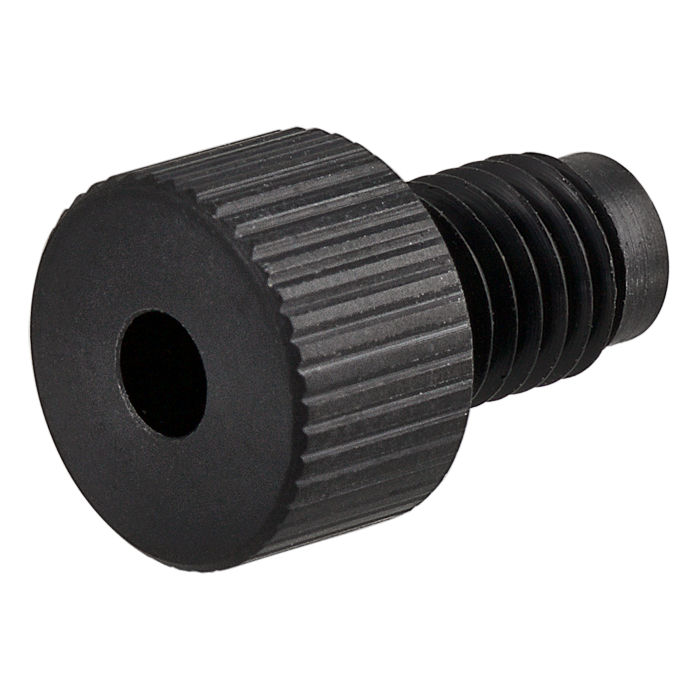

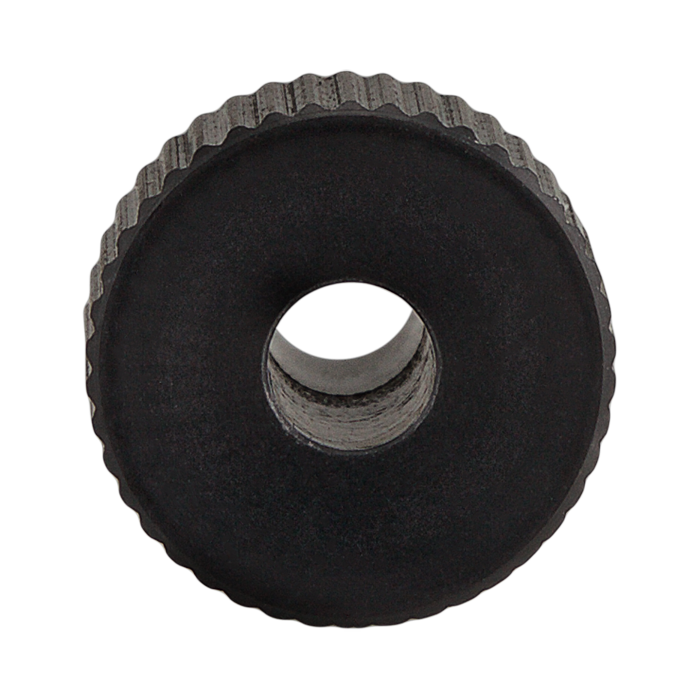

Tubing Connector Nuts, low pressure, 1/8 inch, PEEK, Black with 1/4-28 screw threads, for use with flange free, polymeric tubing. ARE-Applied Research brand. 5/PK.

Additional Info:

These tubing connector nuts are used to connect 1/8th inch (3.2 mm) OD polymeric tubing in the low pressures zones of HPLC systems and other low pressure, fluidic uses.

  • Convenient, eliminates need for flanging.

  • Compatible with 1/4 - 28 UNF fitting ports.

  • Useful up to approximately 500 psi or 34.5 bar.

  • Maximum Temperature: 100°C.

Tubing must NOT be flanged (flangeless) and ferrules are required to work properly which are sold separately. Click HERE for ETFE Ferrule Ordering Information.
