Tefzel tubing | For low pressure zones | ETFE

Use low pressure tubing on all HPLC systems; before the injector, after the detector, on mobile phase inlet tubing and “to waste” tubing. Low pressure tubing is also used for low pressure LC systems where chemical inertness is desired. All MicroSolv™ low pressure tubing is pure and chemically inert.

This low-pressure plastic tubing has the highest-pressure rating for plastic tubing used for mobile phases. This tubing is extruded from virgin ETFE without any additives mixed into the original ETFE material. ETFE tubing is widely used in low and medium-pressure laboratory applications due to the relatively high burst-pressure. Please be aware that ETFE tubing is not resistant to all chemicals. Some organic solvents may cause swelling and reduce the pressure stability.

Tubing specification tolerance is +/-0.05 mm for 1/16” OD and +/-0.1 mm for 1/8” OD tubing.

ETFE Ethylene tetrafluoroethylene belongs to a PFAS group but is PTFE free. Click HERE for polymeric tubing specifications.

Clear All Selections Clear All Selections

Share mdi-content-copy

{{ pids.length }} PRODUCTS MATCHING

Product Ordering Information

48510-10-1M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-10-3M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-10

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-10-10M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-10-C

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

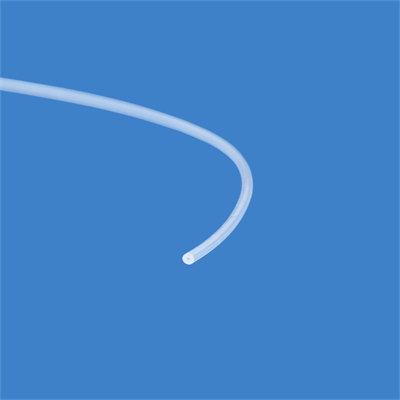

48510-10-1C

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information

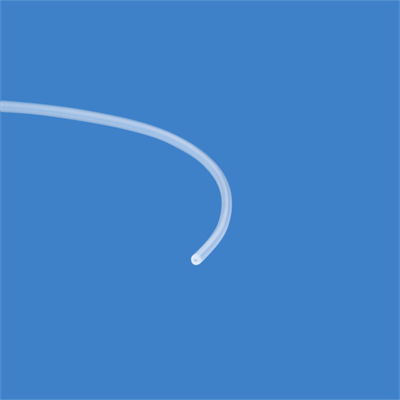

48510-20-1M

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-20-3M

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-20

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-20-10M

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-20-C

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

48510-20-1C

Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information

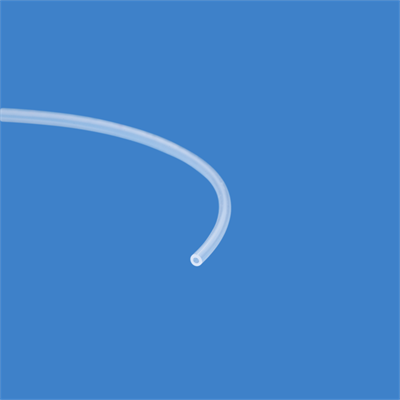

48510-30-1M

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-30-3M

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-30

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-30-10M

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-30-C

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

48510-30-1C

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information

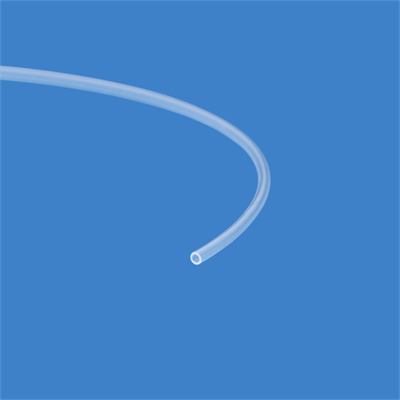

48510-40-1M

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-40-3M

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-40

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-40-10M

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48510-40-C

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

48510-40-1C

Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information

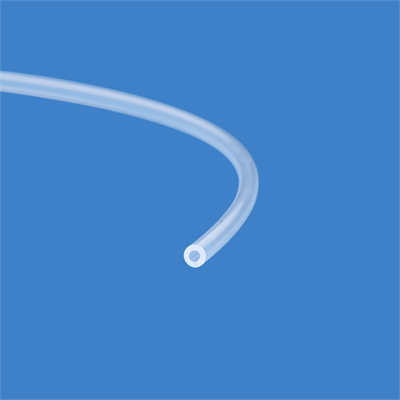

48555-65-1M

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48555-65-3M

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48555-65

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48555-65-10M

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48555-65-C

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

48555-65-1C

Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information

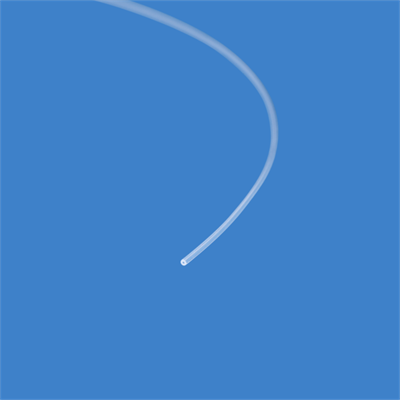

48509-10-1M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48509-10-3M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48509-10

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48509-10-10M

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

48509-10-C

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.

Additional Information

This items is made to order and is not returnable and order cannot be canceled.

48509-10-1C

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.

Custom Order Item. Inquire for more information.

Additional Information

Click Here for More Information
