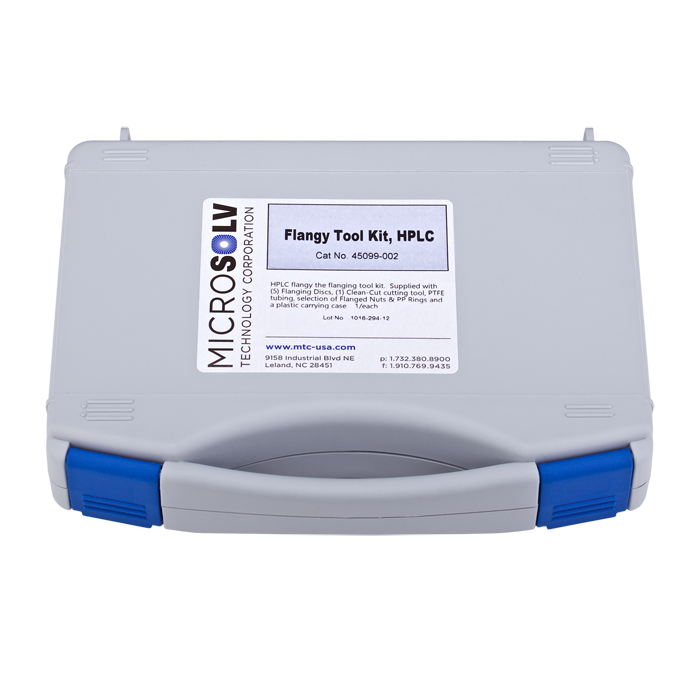

Flanging Tool Kit with 5 Drills, Tubing Cutter, Tubing Connectors, Tubing & Plastic Carrying Case. ARE-Applied Research brand. 1 EA.
Additional Info:
"Flangy the Tool" for cold flanging of Polymer or thin walled PEEK Tubing, provides an easy and smooth way to make or restore, tubing tip, flanges easy. As the flange is created by mechanical means rather than by heat, the resulting flange itself will be more long lasting and stable.
This Kit includes the Flanging Tool, set of 5 flanging drills (pins), a sample of PTFE Tubing that is 1/16" ID x 0.75" OD, six feet long, and the Clean Cut Tubing Cutting Tool, a selection of Tubing Connectors (nuts) with PP rings and the carrying case.
(5) Flanging Drills (pins)
PEEK Tubing Drill with 0.5 mm SS Pin 45099-105
Polymer Tubing Drill with 0.8 mm Plastic Pin 45099-108
Polymer Tubing Drill with 0.8 mm Titanium Pin 45099-308
Polymer Tubing Drill with 1.3 mm Plastic Pin 45099-113
Polymer Tubing Drill with 1.3 mm Titanium Pin 45099-313
Suitable for use with soft and semi hard, low pressure, polymer tubing, including PTFE, FEP, PE, ETFE, PP & Tefzel or with thin walled PEEK they make ideal flanges for Flanged Tubing Connectors (nuts).
Click HERE for Operating Instructions.
