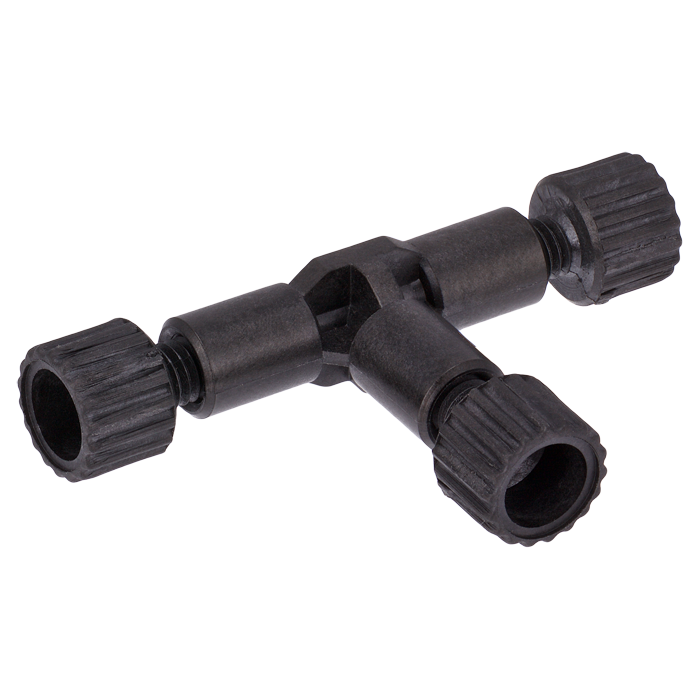

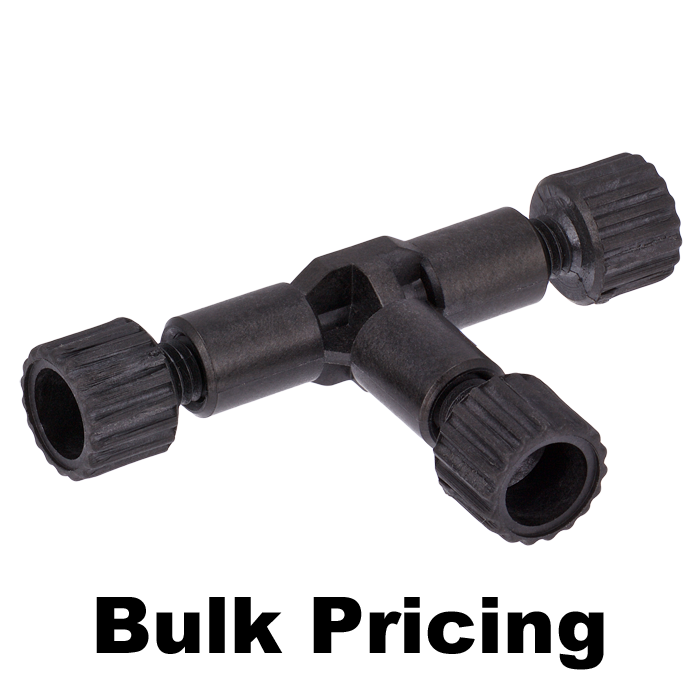

Union, Connector Kits, Tee, high pressure, 0.50 mm / 0.020 through hole with 10-32 screw threads. Carbon PEEK Endure, with connector nuts. Use with 1/16 tubing. ARE-Applied Research brand. Bulk Price.
Additional Info:
These "Union" Tee's are used to connect PEEK or stainless steel tubing on all ends, in the high pressures zones of HPLC systems. An internal "T" flow pattern is often used to split flow into two directions or to combine two streams into one.
Dead Volume - 1.17 µL

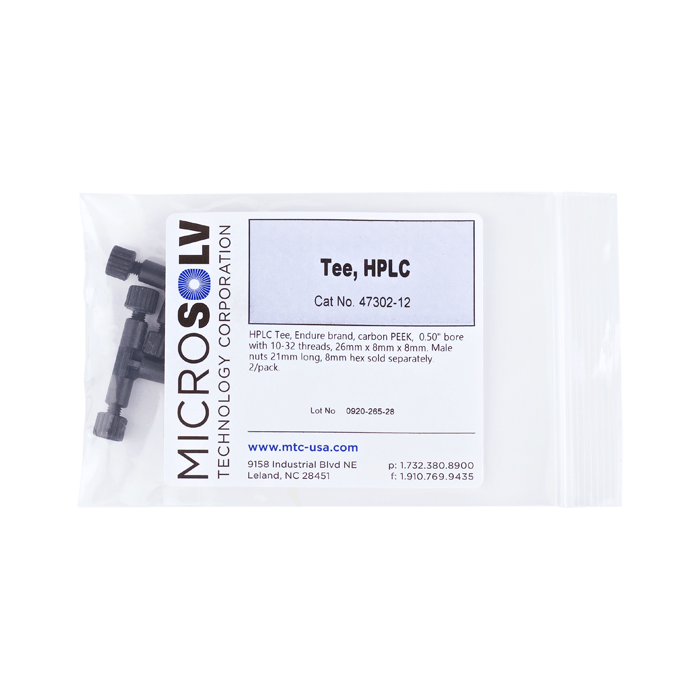

Supplied with 1 Tee Union 47302-11 and three finger tightened connectors (nuts) 47301-05.
Carbon PEEK has been reinforced with carbon fiber, giving it the highest strength and stiffness of all the PEEK grades and improving its load-carrying capacity.
Note: Click HERE for key differences between high and low pressure unions and adapters.
