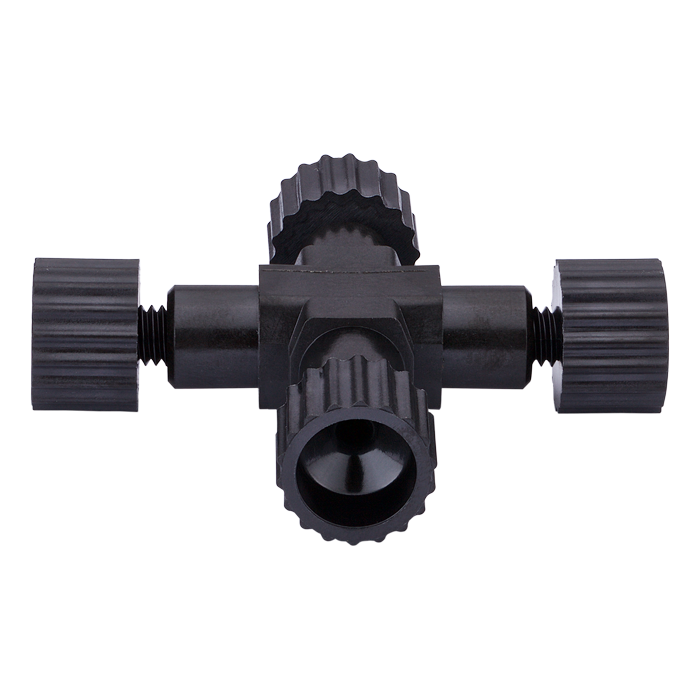

Union, Connector Kits, Cross, high pressure, 0.50 mm / 0.020 through hole with 10-32 screw threads. Carbon PEEK Endure, with connector nuts. Use with 1/16 tubing. ARE-Applied Research brand. 10/PK.
Additional Info:
These "Union" kits are used to connect PEEK or stainless steel tubing with the same connectors on all ends in the high pressures zones of HPLC systems. A "Cross (X)" internal flow pattern is often used to split flow into two or three directions or to combine two or three streams into one.
Supplied with 2 cross unions 47302-25 and four finger tightened connectors (nuts) 47301-05.
Carbon PEEK has been reinforced with carbon fiber, giving it the highest strength and stiffness of all the PEEK grades and improving its load-carrying capacity.
Note: Click HERE for key differences between high and low pressure unions and adapters.
