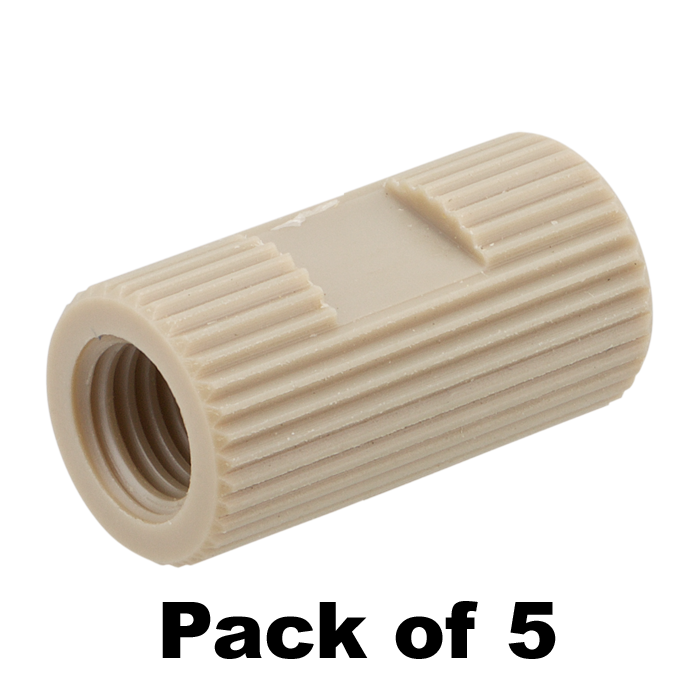

Adapter, for use with low to medium pressure HPLC. 1/4-28 female to female Luer connection, 1.3 mm / 0.051 bore size. PEEK. ARE-Applied Research brand. 5/PK.
Additional Info:
These wider bore, all-PEEK adapters have one side with a 1/4-28 threaded female port, and the other side is a female Luer slip connection.
These easy to install adapters are great tools for priming HPLC instruments through the prime purge valve with a syringe.
Maximum Temperature: 100°C.
Maximum Pressure: 8,000 psig.
Click HERE for economical pack of 10.
Click HERE for 10-32 threaded adapter.
The "flat" section on the knurled adapter allows to use a wrench for an extra 1/8 of clockwise turn for tighter sealing or a slight counterclockwise turn to help remove if a tight fitting is too hard for hand removal. The flat section can also be used to hold the adapter in place with a wrench while the male nut is tightened in the adapter.
Note: Click HERE for key differences between high and low pressure unions and adapters.
