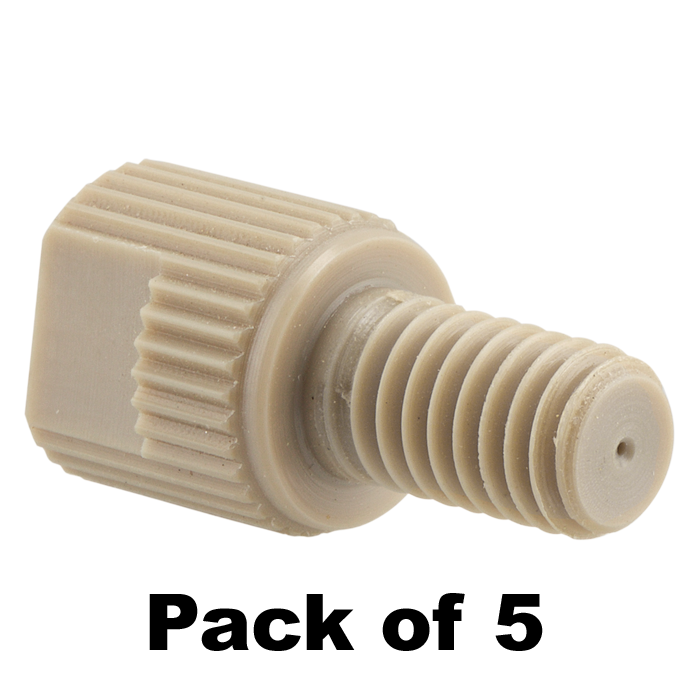

Adapter, for use with low to medium pressure HPLC. 1/4-28 female to M6 male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 5/PK.
Additional Info:
This all-PEEK adapter has a 1/4-28 threaded female port on one side and a European style M6 screw thread male connector on the other side.
Maximum Temperature: 100°C.
Maximum Pressure: 8,000 psig.
Click HERE for economical pack of 10.
The "flat" section on the knurled adapter allows to use a wrench for an extra 1/8 of clockwise turn for tighter sealing or a slight counterclockwise turn to help remove if a tight fitting is too hard for hand removal. The flat section can also be used to hold the adapter in place with a wrench while the male nut is tightened in the adapter.
Note: Click HERE for key differences between high and low pressure unions and adapters.
