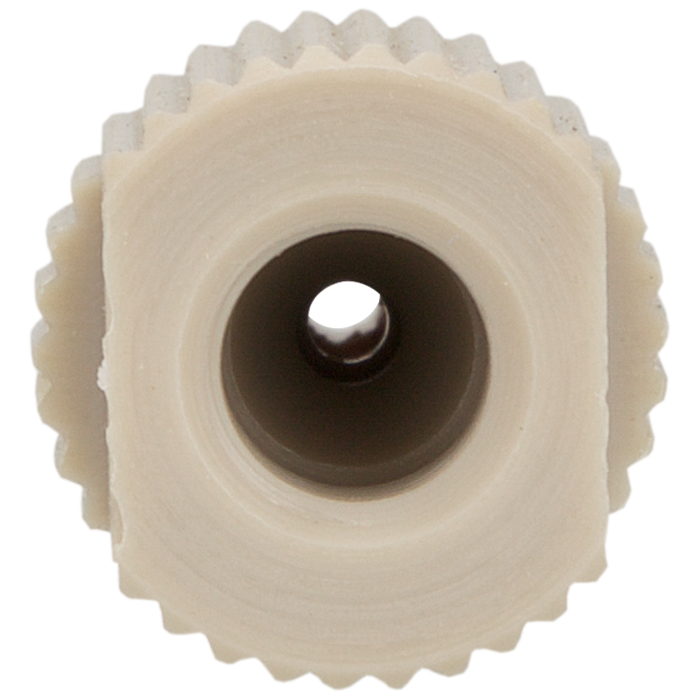

Adapter, for use with low to medium pressure HPLC. 10-32 female to male luer connection, 1.3 mm / 0.051 bore size. PEEK. ARE-Applied Research brand. 10/PK.
Additional Info:

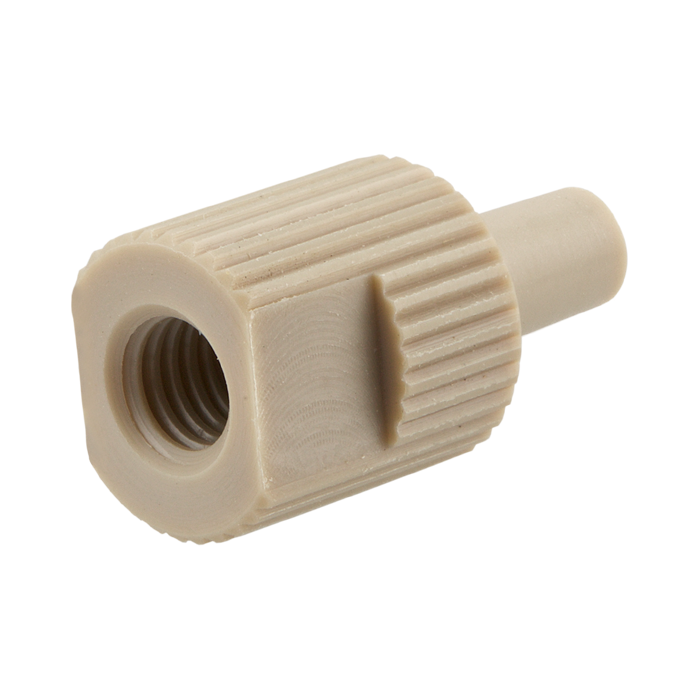

This wider bore, all-PEEK adapter has a 10-32 threaded female port on one side and a male Luer slip connector on the other side.
This is a great tool for using tubing with a priming valve on HPLC instruments.
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig.
Click HERE for pack of 5.
Click HERE for 1/4-28 threaded adapter.
The "flat" section on the knurled adapter allows to use a wrench for an extra 1/8 of clockwise turn for tighter sealing or a slight counterclockwise turn to help remove if a tight fitting is too hard for hand removal. The flat section can also be used to hold the adapter in place with a wrench while the male nut is tightened in the adapter.
Note: Click HERE for key differences between high and low pressure unions and adapters.
