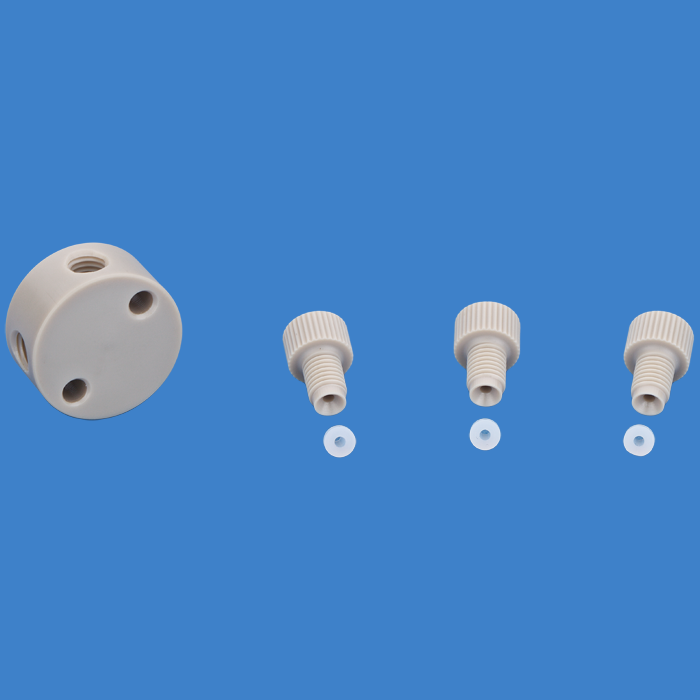

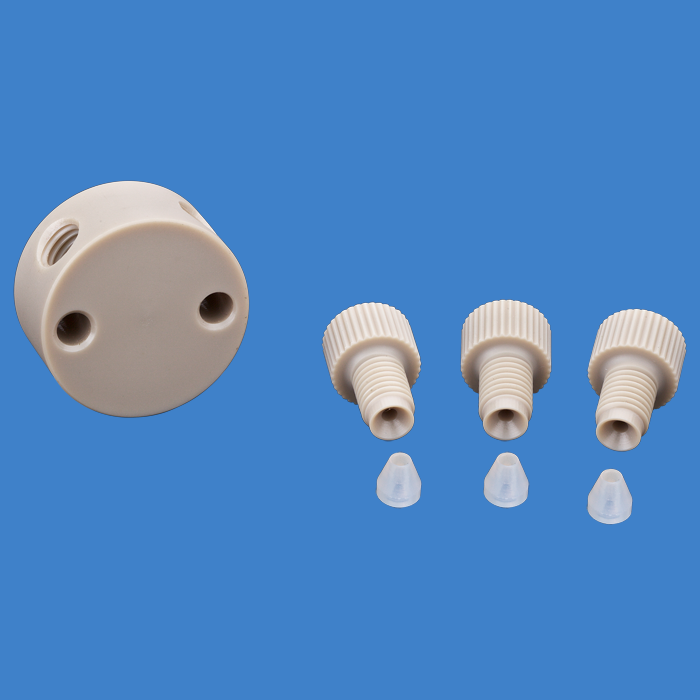

Union, connector set, Tee, low pressure, 0.8 mm / 0.031 inch through hole with 1/4-28 screw threads. PEEK, round with an internal "T". Use with 1/16 inch tubing. ARE-Applied Research brand. 5/PK.
Additional Info:
This all-PEEK set of one union and three finger tight fittings and 3 matching, polyethylene conical ferrules making a standard pilot length, allowing you to connect three pieces of low pressure, 1/16th tubing.
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig.
Click HERE for economical pack of 10.
This Tee (T) union through hole has two internal 90° turns (connections). With this you can "blend the flow" of two lines or "split the flow" into two outward lines of liquid, depending on which flow direction you use.
Note: Click HERE for key differences between high and low pressure unions and adapters.
