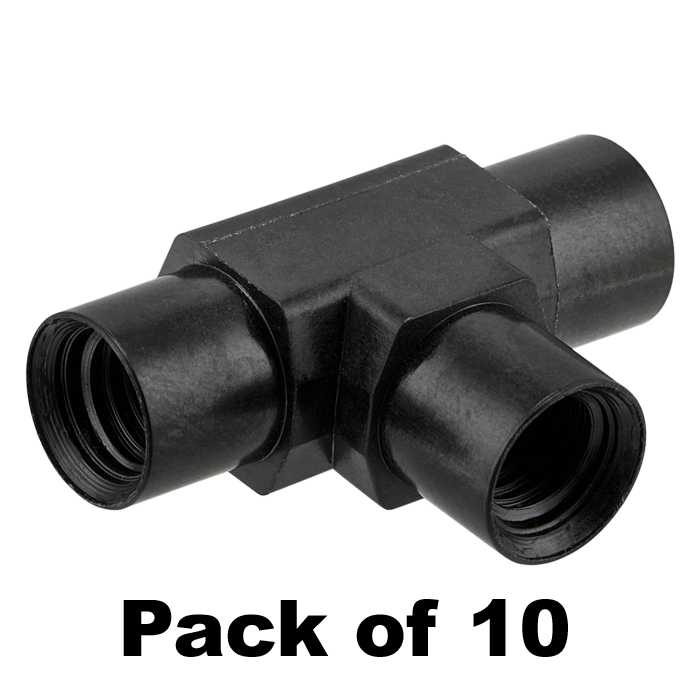

Union, Connector, Tee, low pressure, 1.0 mm / 0.040 inch through hole with 1/4-28 screw threads, Carbon PEEK Endure, Round with an Internal "T". Use with 1/16 tubing. ARE-Applied Research brand. 10/PK.
Additional Info:
These "Union" Tee's are used to connect PEEK or stainless steel tubing with the same connectors on all ends in the low pressures zones of HPLC systems. An internal "T" flow pattern is often used to split flow into two directions or to combine two streams into one.
Dead Volume - 4.17 µL
Note: Click HERE for key differences between high and low pressure unions and adapters.
