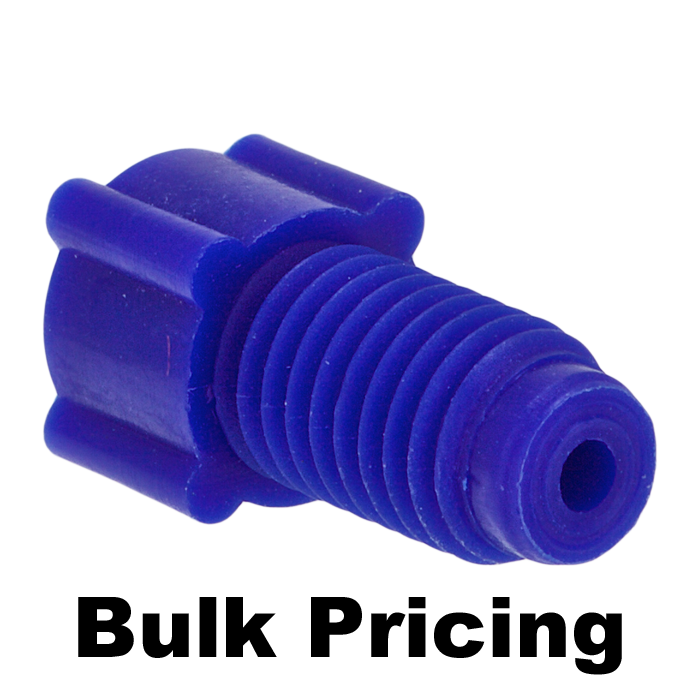

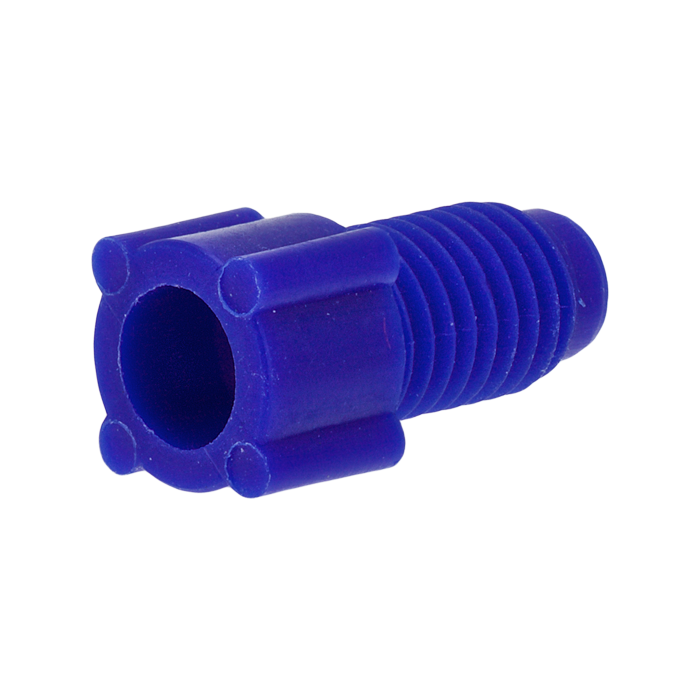

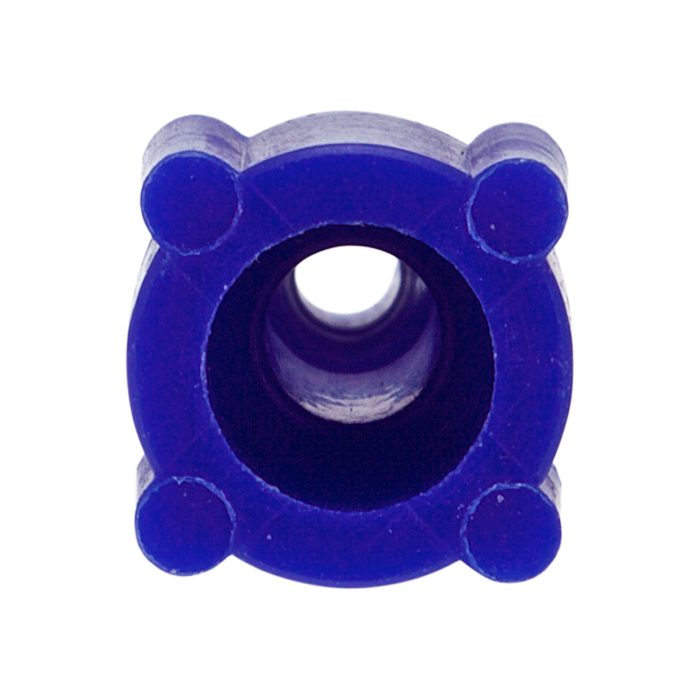

Tubing Connector Nuts, low pressure, 1/16 inch, Polypropylene, Blue with 1/4-28 screw threads, for use with flanged, polymeric tubing. ARE-Applied Research brand. Bulk Price.
Additional Info:
These tubing connector nuts are used to connect 1/16th inch (1.6 mm) polymeric tubing in the low pressures zones of HPLC systems and other low to medium pressure, fluidic uses.
Compatible with 1/4 - 28 UNF fitting ports.
Useful up to approximately 500 psi or 34.5 bar.
Maximum Temperature: 100°C.
Click HERE for a convenient flanging tool.
Tubing must be flanged, and washers are required to work properly, and sold separately, click HERE for washer ordering information.
